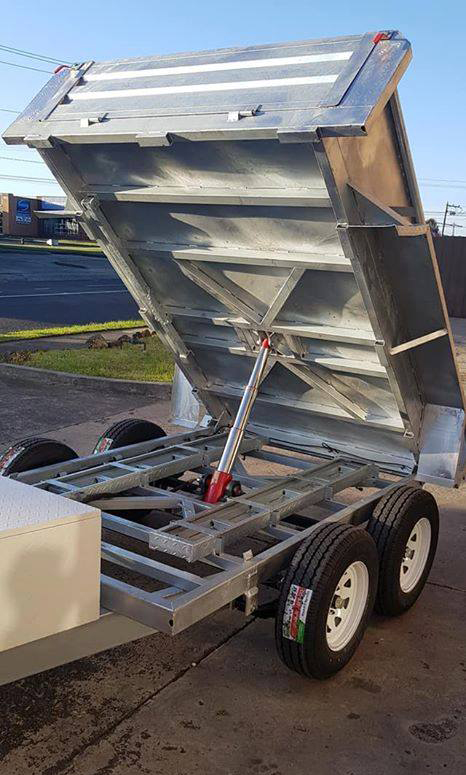

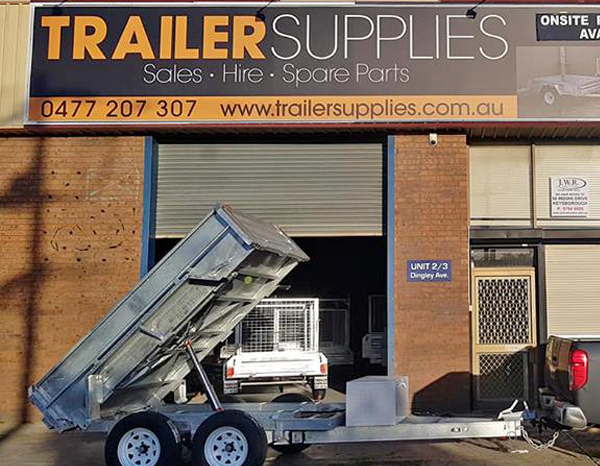

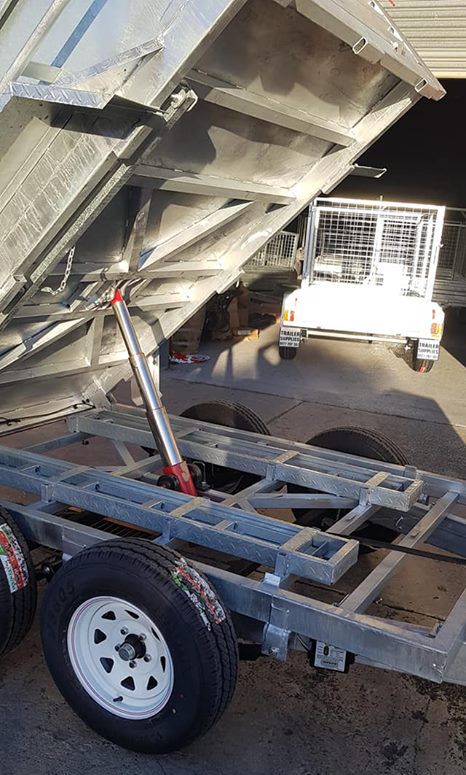

Box Trailer 8×5 Hydraulic Tipper 3.5 Tonne
- Hot Dipped Galvanised
- 14″ Brand New Sunraysia Rims & Light Truck Tyres (840KG Rating)
- Front and Rear Fold Down Gates
- Tie Down Rails On Sides
- 2.5mm Hot Dipped Galvanised Checker Plate Floor & Inner Side Box
- Step Up Platform above Wheel Guards
- 1900mm Extra Long Draw Bar Extended to Underside of Chasis
- Heavy Duty Roller Rocker 6 Leaf Suspension
- Fully Welded Heavy Duty Body with 50mm x 50mm RHS Tube Chassis
- 45mm Solid Square Axles with Mechanical Disc Brake & Assembly
- LED Tail Lights
- Free Heavy Duty Swing up Jockey Wheel & Manual Parking Brakes
- 50mm Australian Standard Coupling
- ADR Standard Heavy Duty Chain & Load Rated Shackle
- Flat or Round 7-Pin Plug
$7,799.00
- Hot Dipped Galvanised
- 3-Stage Hydraulic Tipping Ram
- Lockable Tool Box for Hydraulic System & 12V Automotive Battery
- 14″ Brand New Sunraysia Rims & Commercial Grade Tyres (950KG Rating/Wheel)
- Front and Rear Fold Down Gates & Tie Down Rails On Sides
- 2.5mm Hot Dipped Galvanised Checker Plate Floor & Inner Side Box
- 450mm Side Walls for Added Storage
- Step Up Platform above Wheel Guards
- 1900mm Extra Long Draw Bar Extended 900mm to underside of Chasis
- Unique 150mm x 50mm x 3mm Draw Bar for Extra Strength & Durability*
- Heavy Duty Roller Rocker 7 Leaf Suspension
- Fully Welded Heavy Duty Body with 50mm x 50mm RHS Tube Chassis
- 50mm Solid Square Axles with All Wheel Electric Brakes
- Electric Brake-away Unit Fitted
- LED Tail Lights
- Free Heavy Duty Swing up Jockey Wheel & Manual Parking Brakes
- 50mm Australian Standard Coupling
- ADR Standard Heavy Duty Chain & Load Rated Shackle
- Flat or Round 7-Pin Plug
Dimensions & Weight (No Cage):
- Internal Size: L2440 x W1525 x H450
- Overall Size: L3790 x W2025 x H1040
- Gross Vehicle Mass: 3500KG
- Net Weight: 670KG
Optional Extras
- 600mm Removable Cage
- 900mm Removable Cage
- 14” Spare Light Wheel
- 12 Month Registration (VIC)
- Canvas Cover (600mm)
- Canvas Cover (900mm)
- Anderson Plug
| Options | 8×5 600mm, 8×5 900mm, 8×5 No Cage |
|---|
Features of Our
Trailers
HEAVY DUTY DESIGN
Is the load too heavy for a pick-up? Count on the heavy duty design we offer to transport any kind of heavy material.
TOP-QUALITY GALVANISED TRAILERS
All our trailers have premium galvanised coating that gives an outstanding level of resistance and is very hard to damage during the transportation of materials. Galvanised coating life expectancy is not only long but very reliable (around 50 years in rural areas).
FULLY COMPLIANT WITH AUSTRALIAN DESIGN STANDARDS
As an Australian-owned and operated business, we take pride in saying our country has the most strict design standards in the entire world. We make sure all our trailers comply with the minimum coating thickness required.
BEST FORM OF RUST PROTECTION AVAILABLE HOT-DIPPED GALVANISED COATING
Is the load too heavy for a pick-up? Count on the heavy-duty design we offer to transport any kind of heavy material.
