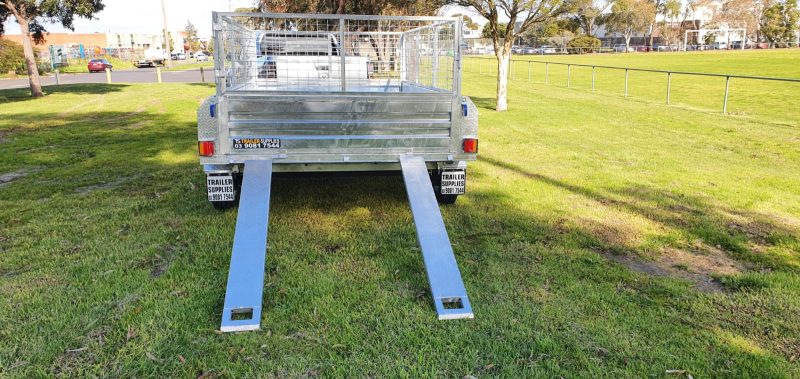

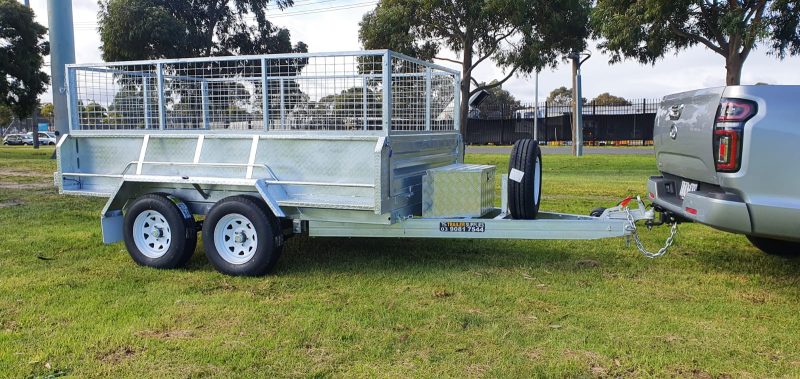

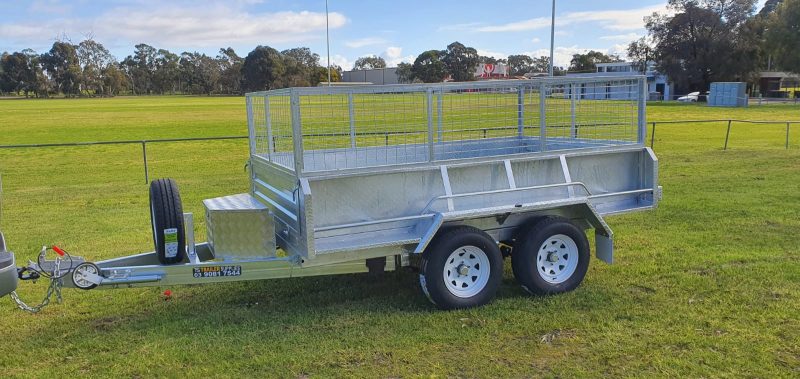

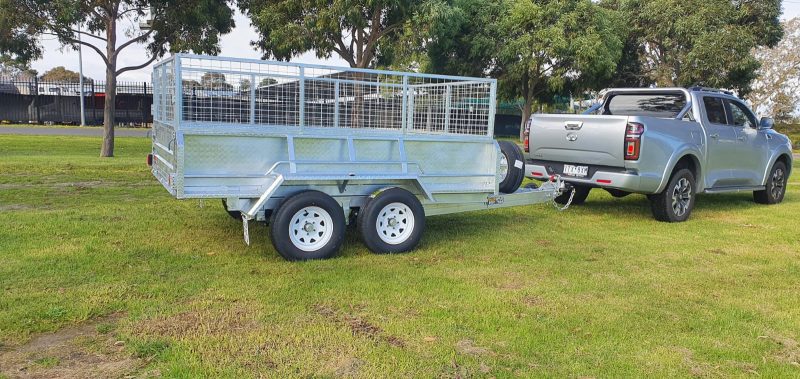

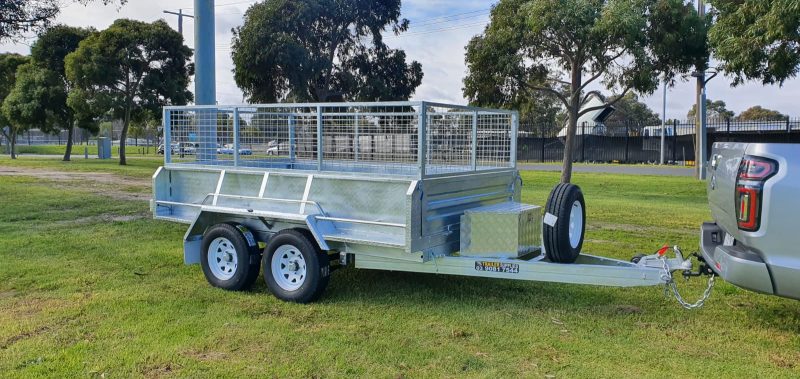

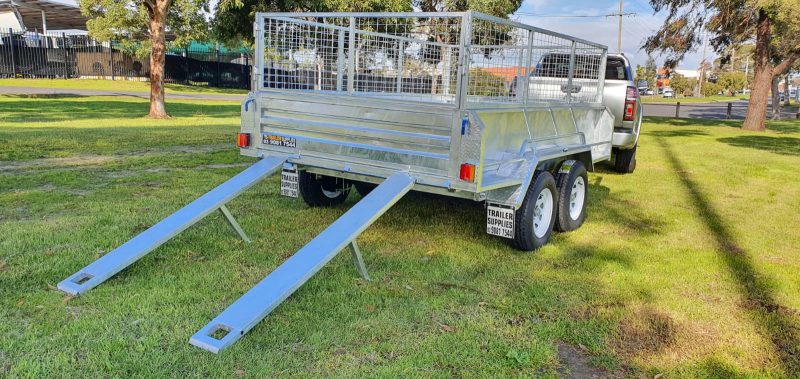

Box Trailer 10×6 Hydraulic Tipper 3.5 Tonne

Box Trailer 10×6 Hydraulic Tipper 3.5 Tonne

  • Hot Dipped Galvanised

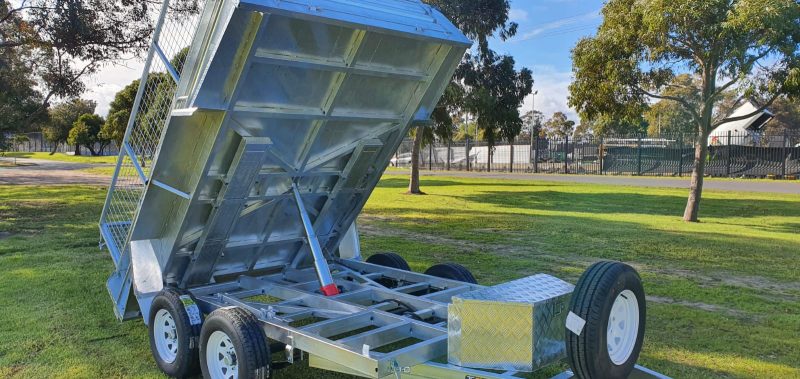

  • 4-Stage Hydraulic Tipping Ram
  • Lockable Tool Box for Hydraulic System & 12V Automotive Battery
  • 14″ Brand New Sunraysia Rims & Commercial Grade Tyres (950KG Rating/Wheel)
  • Front and Rear Fold Down Gates & Tie Down Rails On Sides
  • 2.5mm Hot Dipped Galvanised Checker Plate Floor & Inner Side Box
Price starts from

$9,949.00

No Cage
( $0.00 )
10 x 6 600 Cage
( $350.00 )
10 x 6 900 Cage
( $550.00 )
Spare Wheel ($150.00)
12 months Victorian registration ($150.00)
Ladder Racks ($550.00)
Heavy Ribstop material canvas cover with metal pitched frame ($400.00)

Features:

  • Hot Dipped Galvanised
  • 4-Stage Hydraulic Tipping Ram
  • Lockable Tool Box for Hydraulic System & 12V Automotive Battery
  • 14″ Brand New Sunraysia Rims & Commercial Grade Tyres (950KG Rating/Wheel)
  • Front and Rear Fold Down Gates & Tie Down Rails On Sides
  • 2.5mm Hot Dipped Galvanised Checker Plate Floor & Inner Side Box
  • 450mm Side Walls for Added Storage
  • Step Up Platform above Wheel Guards
  • 1900mm Extra Long Draw Bar Extended 900mm to underside of Chassis
  • Unique 150mm x 50mm x 4mm Draw Bar for Extra Strength & Durability*
  • Heavy Duty Roller Rocker 8 Leaf Suspension
  • Fully Welded Heavy Duty Body with 50mm x 50mm RHS Tube Chassis
  • 50mm Solid Square Axles with All Wheel Electric Brakes
  • Electric Brake-away Unit Fitted
  • LED Tail Lights
  • 50mm Australian Standard Coupling
  • ADR Standard Heavy Duty Chain & Load Rated Shackle
  • Flat or Round 7-Pin Plug

Dimensions & Weight (No Cage):

  • Internal Size: L3050 x W1800 x H450
  • Overall Size: L4400 x W2300 x H890
  • Gross Vehicle Mass: 3500KG
  • Net Weight: 820KG

Optional Extras:

  • 600mm Removable Cage
  • 900mm Removable Cage
  • 14” Spare Light Wheel
  • 12 Month Registration (VIC)
  • Canvas Cover (600mm)
  • Canvas Cover (900mm)
  • Anderson Plug
Options

10×6 600mm, 10×6 900mm, 10×6 No Cage

Features of Our
Trailers

HEAVY DUTY DESIGN

Is the load too heavy for a pick-up? Count on the heavy duty design we offer to transport any kind of heavy material.

TOP-QUALITY GALVANISED TRAILERS

All our trailers have premium galvanised coating that gives an outstanding level of resistance and is very hard to damage during the transportation of materials. Galvanised coating life expectancy is not only long but very reliable (around 50 years in rural areas).

FULLY COMPLIANT WITH AUSTRALIAN
DESIGN STANDARDS

As an Australian-owned and operated business, we take pride in saying our country has the most strict design standards in the entire world. We make sure all our trailers comply with the minimum coating thickness required.

BEST FORM OF RUST PROTECTION
AVAILABLE HOT-DIPPED GALVANISED
COATING

Is the load too heavy for a pick-up? Count on the heavy-duty design we offer to transport any kind of heavy material.
