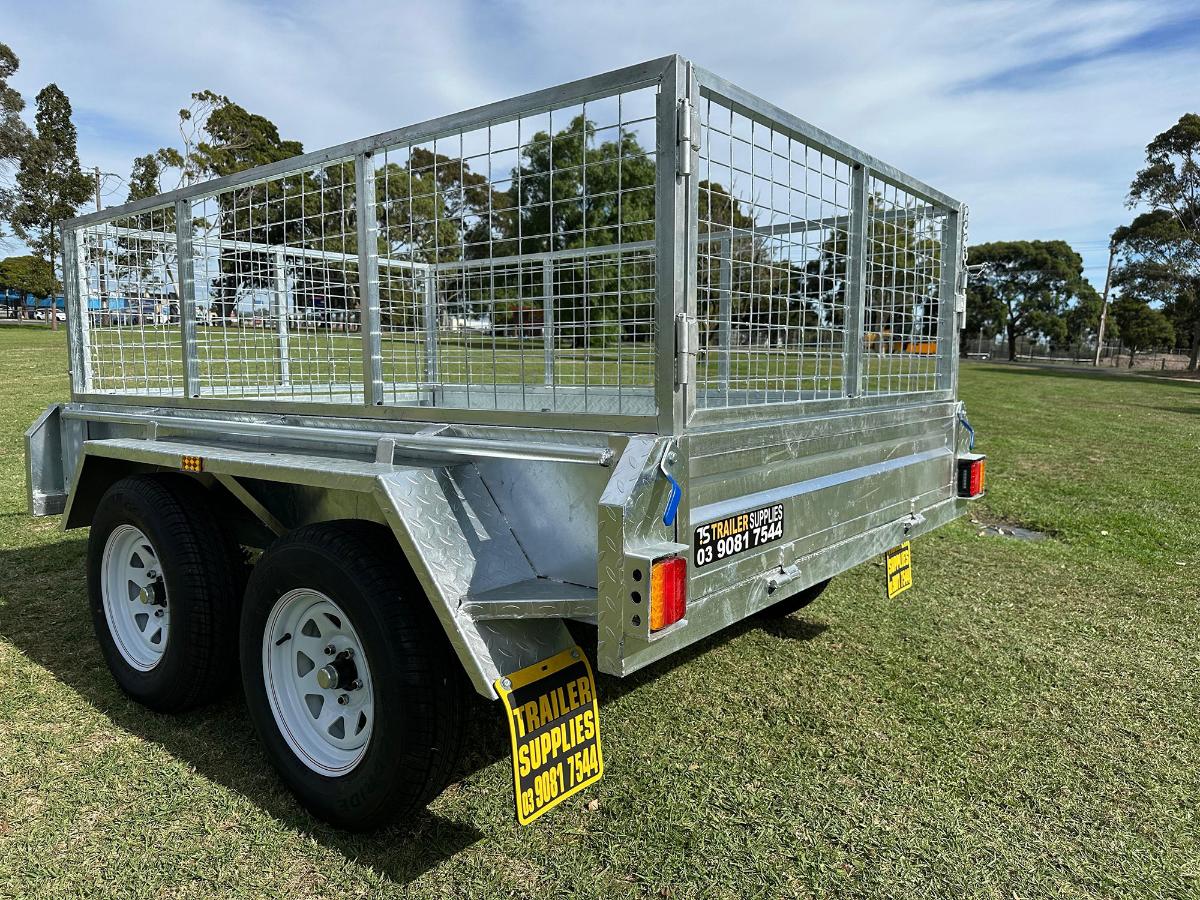

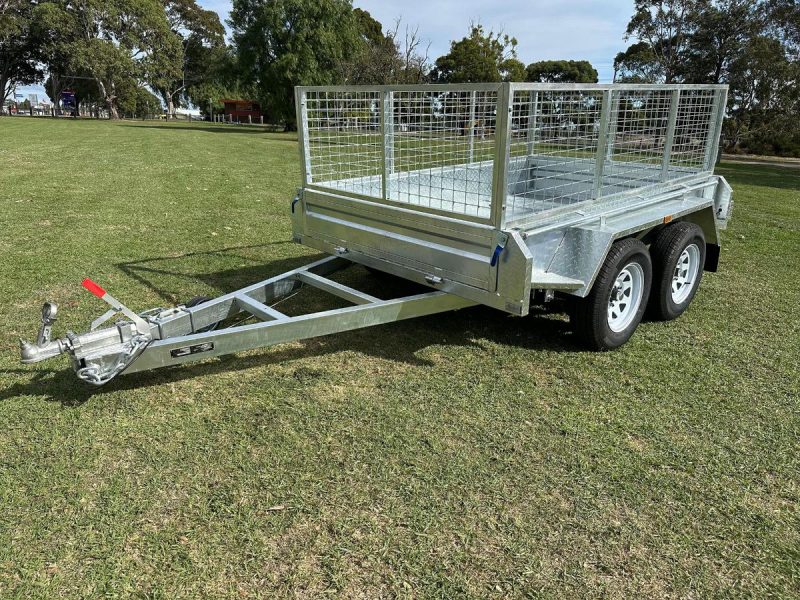

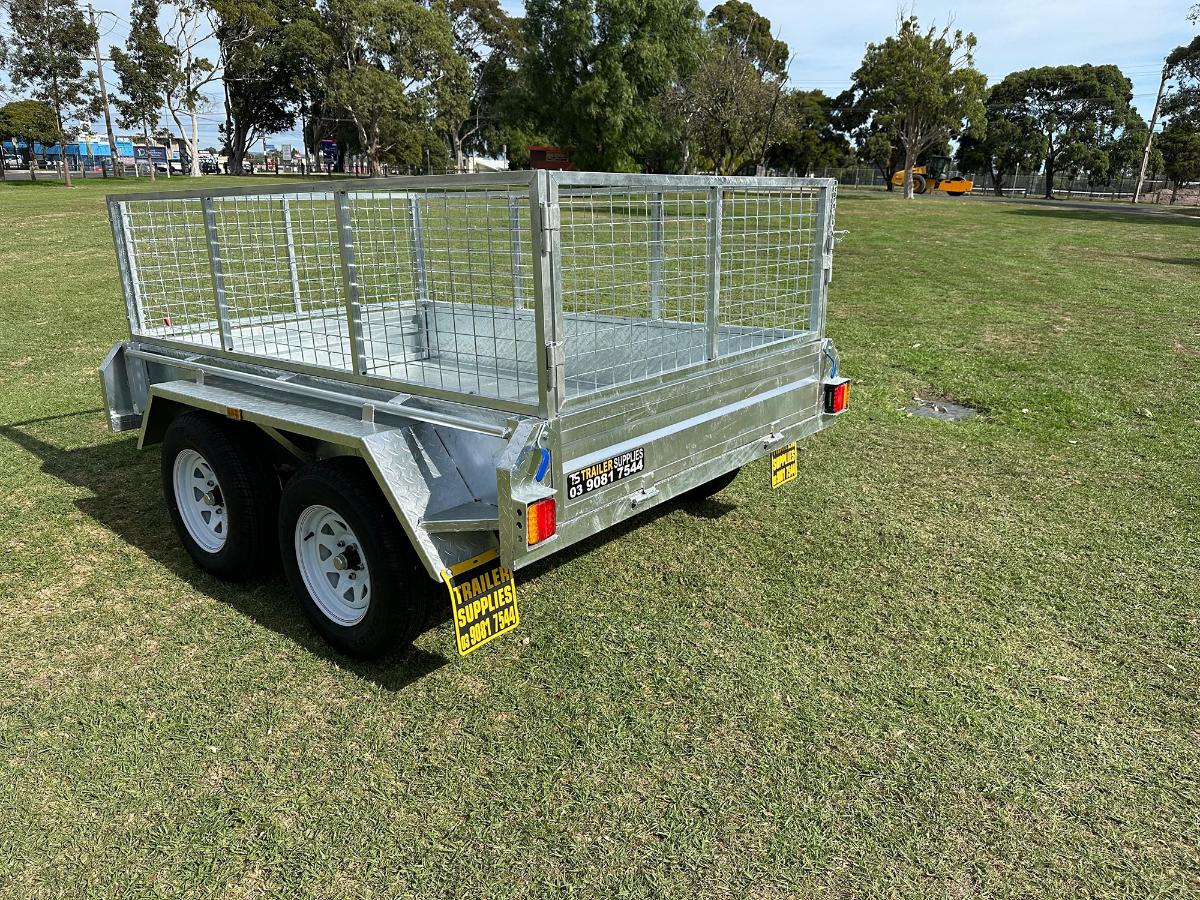

Box Trailer 8×5 Dual Axle

From  $3,500.00

  • Hot Dipped Galvanised
  • 14″ Brand New Sunraysia Rims & Light Truck Tyres (840KG Rating)
  • Japanese NSK Bearings come as standard not cheap Chinese bearings
  • Front and Rear Fold Down Gates
  • Step Up Platform above Wheel Guards
  • 1900mm Extra Long Draw Bar Extended to Underside of Chassis
  • Heavy Duty Roller Rocker 6 Leaf Suspension
  • Fully Welded Heavy Duty Body with 75mm x 50mm RHS Tube Chassis
  • 45mm Solid Square Axles with Mechanical Disc Brake & Assembly

8 in stock

No Cage
( $0.00 )
8 x 5 600 Cage
( $200.00 )
8 x 5 900 Cage
( $300.00 )
Rego ($150.00)
Spare Wheel ($130.00)
Ladder Rack ($330.00)
Heavy Ribstop material canvas cover with metal pitched frame ($460.00)
Mower box and ramp on draw bar ($440.00)
Tool box mounted on draw bar from ($485.00)
SKU: TSBT85D Categories: ,

Description

  • Hot Dipped Galvanised
  • 14″ Brand New Sunraysia Rims & Light Truck Tyres (840KG Rating)
  • Japanese NSK Bearings come as standard not cheap Chinese bearings
  • Front and Rear Fold Down Gates
  • Tie Down Rails On Sides
  • Hot Dipped Galvanised Checker Plate Floor & Inner Side Box
  • Step Up Platform above Wheel Guards
  • 1900mm Extra Long Draw Bar Extended to Underside of Chasis
  • Heavy Duty Roller Rocker 6 Leaf Suspension
  • Fully Welded Heavy Duty Body with 50mm x 50mm RHS Tube Chassis
  • 45mm Solid Square Axles with Mechanical Disc Brake & Assembly
  • LED Tail Lights
  • Free Heavy Duty Swing up Jockey Wheel & Manual Parking Brakes
  • 50mm Australian Standard Coupling
  • ADR Standard Heavy Duty Chain & Load Rated Shackle

Dimensions & Weight (No Cage):

  • Internal Size: L2440 x W1525 x H300
  • Overall Size: L4100 x W2025 x H800
  • Gross Vehicle Mass: 2000KG
  • Net Weight: 520KG

Optional Extras

  • 600mm Removable Cage
  • 900mm Removable Cage
  • 14” Spare Light Wheel
  • 12 Month Registration (VIC)
  • Canvas Cover (600mm)
  • Canvas Cover (900mm)
  • Ladder Racks (Adjustable Height)
  • Ramp (1.5m)
  • Upgrade to 2800KG Capacity
