Description

Features:

• 2.8mm Checker Plate Floor
• Single Piece 150x50x4mm Drawbar/Side Chassis Rail
• 2.2m long extended drawbar for bucket mount
• Temporary tie down rings positioned front and back (Six tie rings non load rated)

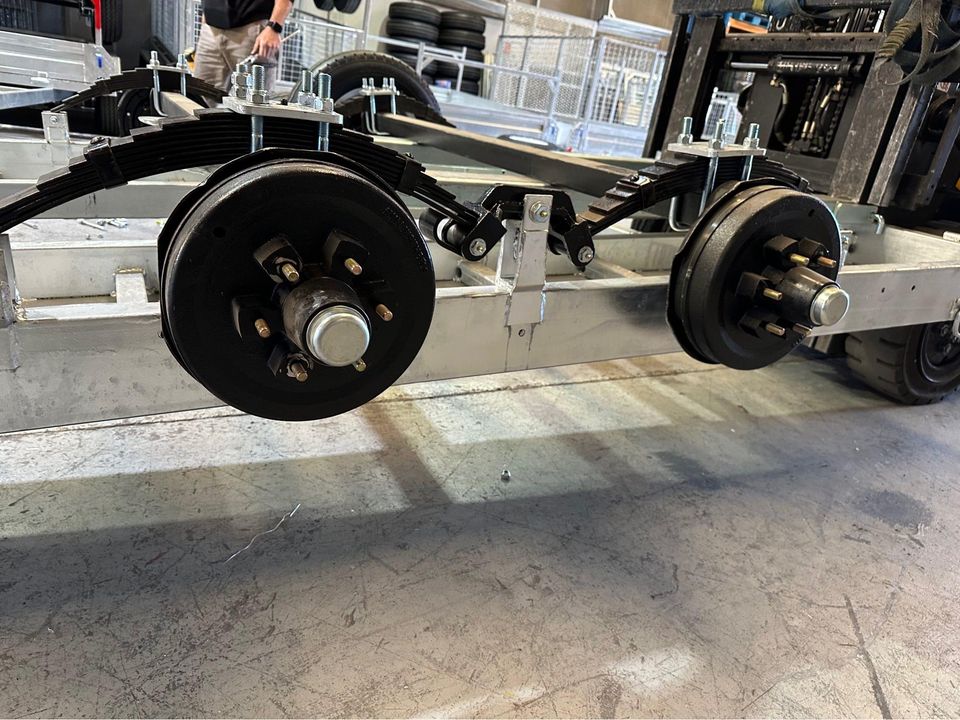

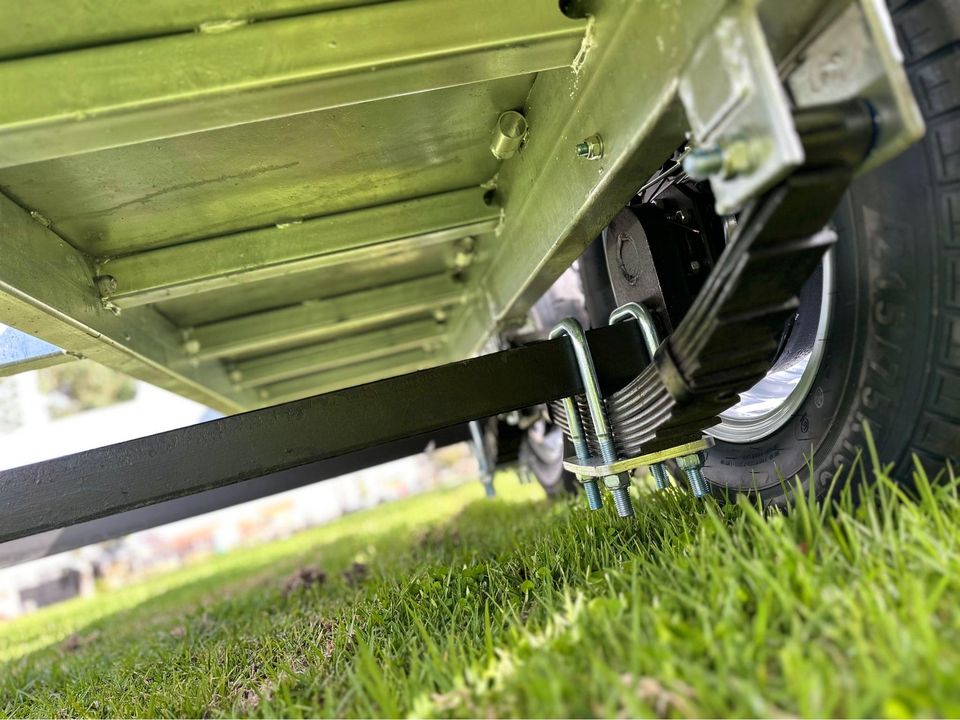

• Heavy Duty Roller Rocker 9 Leaf Suspension
• Reinforced spring hangers + middle gussets
• 63mm solid round drop down axles (Ford stud pattern)
• 150x50x4mm External Chassis frame
• 100x50x4mm (x2) Centered Chassis beams running length ways
• 50x50x3mm Cross Rails with 330mm spacing
• 1.9m long ramps made from 5mm C channel with stabilizing feet
• Gas struts fitted to ramps
• Electric drum brakes fitted to all four wheels
• 70mm Australian Standard Coupling
• ADR Standard Heavy Duty Chain & Load Rated Shackle
• Flat or Round 7-Pin Plug
• Please note Reinforcement plates are advisable on light trucks and rigid vehicles

Dimensions & Weight (No Cage):

• Internal Size: L4150 x W1890
  Overall Size: L5750 x W2480
  Gross Vehicle Mass: 4500KG
  Net Weight: 1,000KG

Optional Extras:

• 16” Spare Light Wheel
• 12 Month Registration (VIC)
