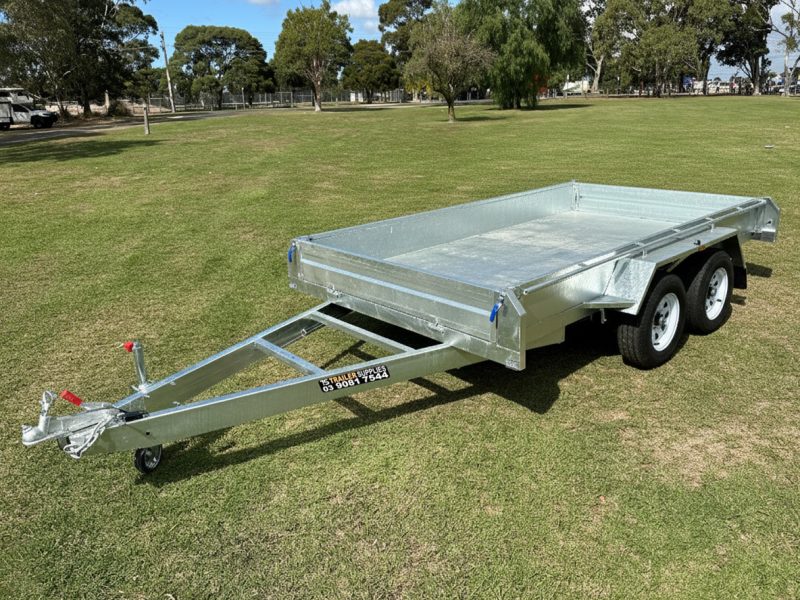

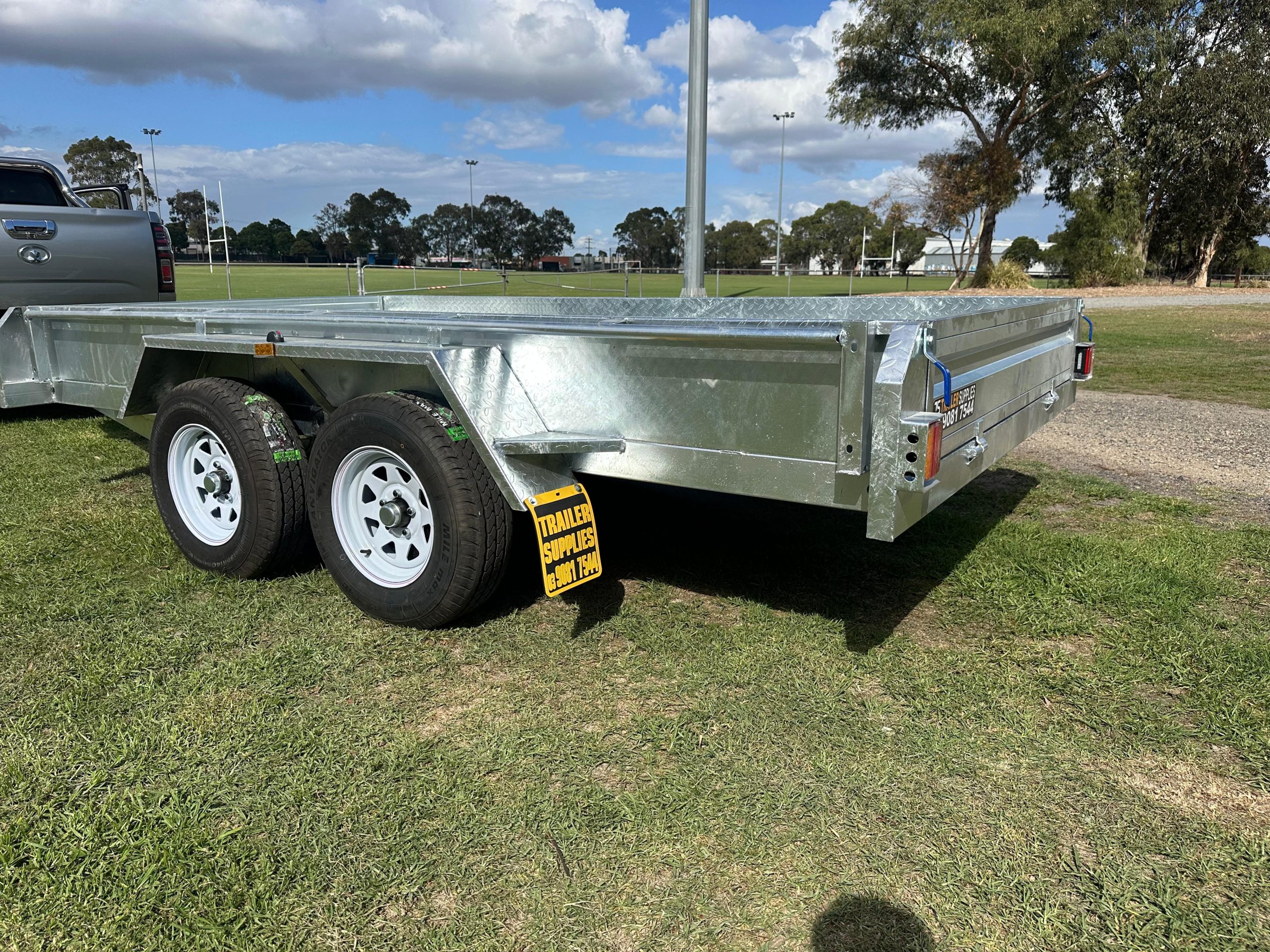

Box Trailer 12×6 Dual Axle 3.5tonne rating

Box Trailer 12×6 Dual Axle 3.5tonne rating

  • Hot Dipped Galvanised
  • 14″ Brand New Sunraysia Rims & Light Truck Tyres (900KG Rating)
  • Japanese NSK Bearings come as standard not cheap Chinese bearings
  • Front and Rear Fold Down Gates & Tie Down Rails On Sides
  • Hot Dipped Galvanised Checker Plate Floor & Inner Side Box
  • Step Up Platform above Wheel Guards
  • 150mm thick, 1900mm Extra Long Draw Bar Extended 900mm to underside of Chassis
  • 50mm solid square axles
  • 4 Wheel electric brakes with parallel bearings
  • Breakaway unit
  • 8 leaf roller rocker suspension
Price starts from

$5,899.00

No Cage
( $0.00 )

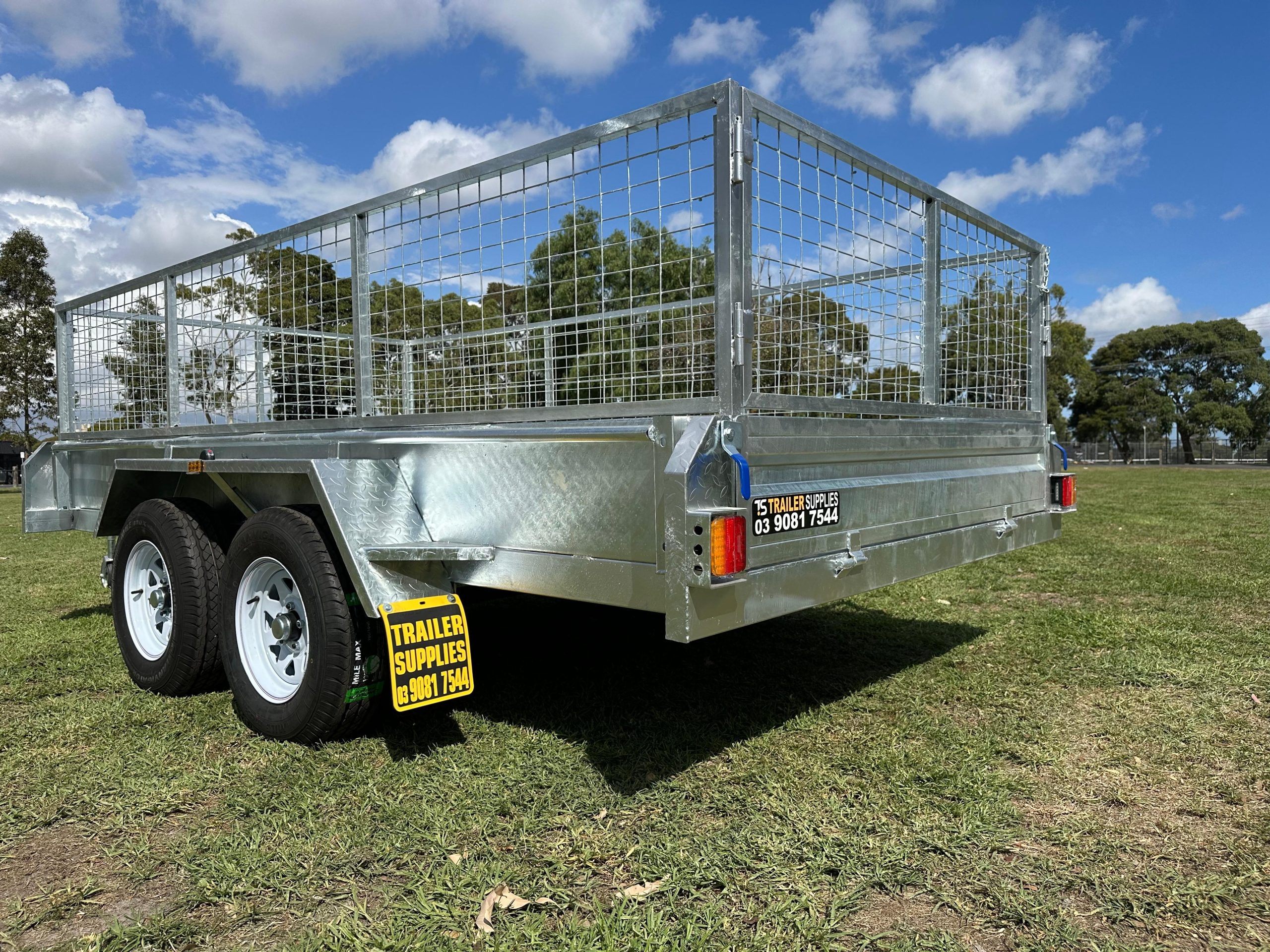

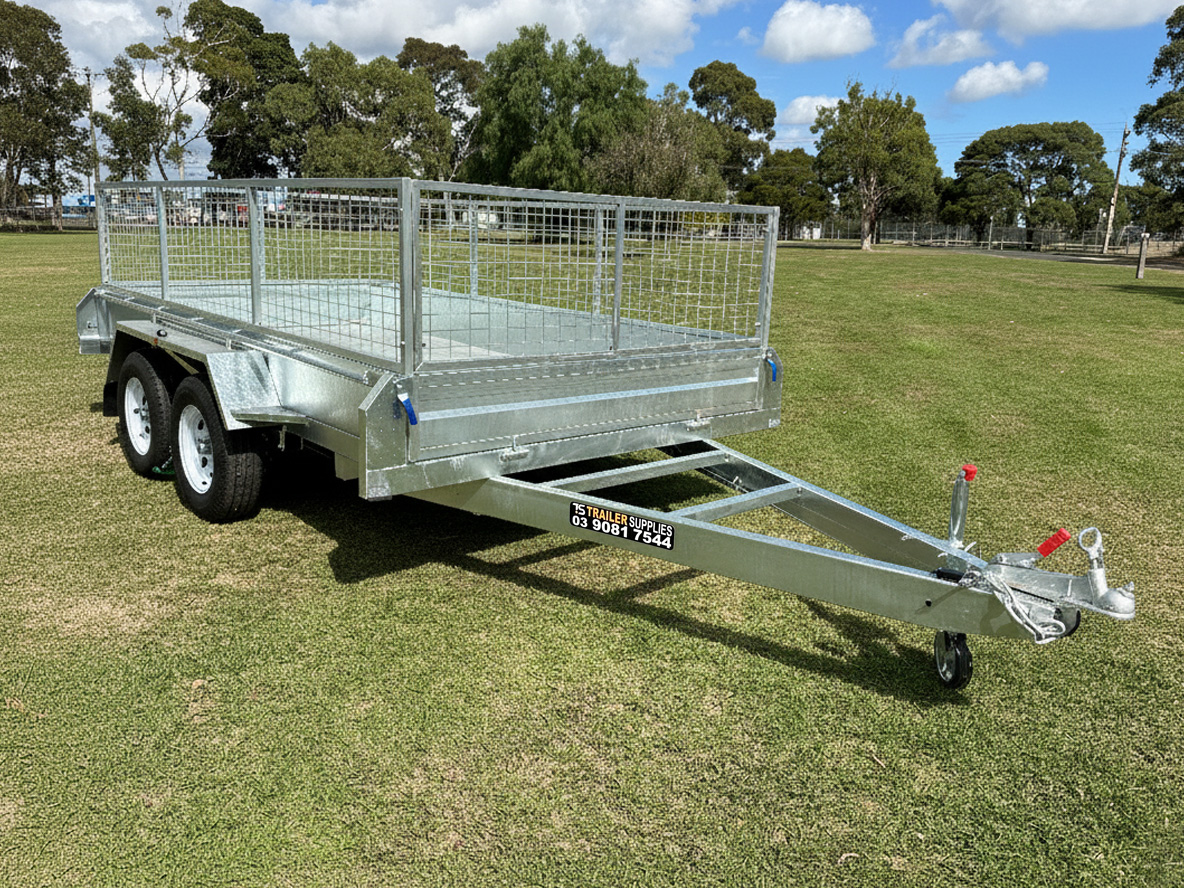

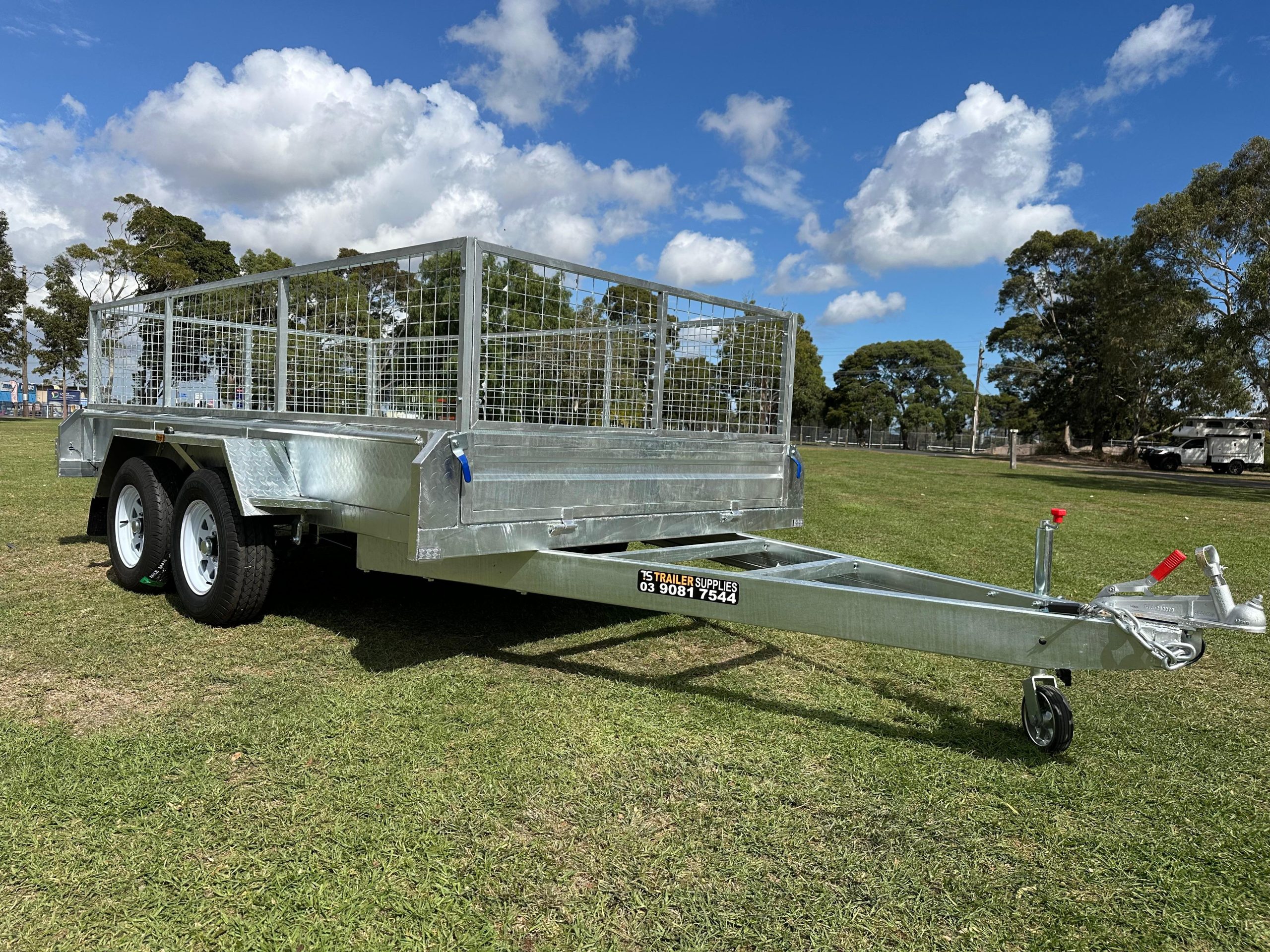

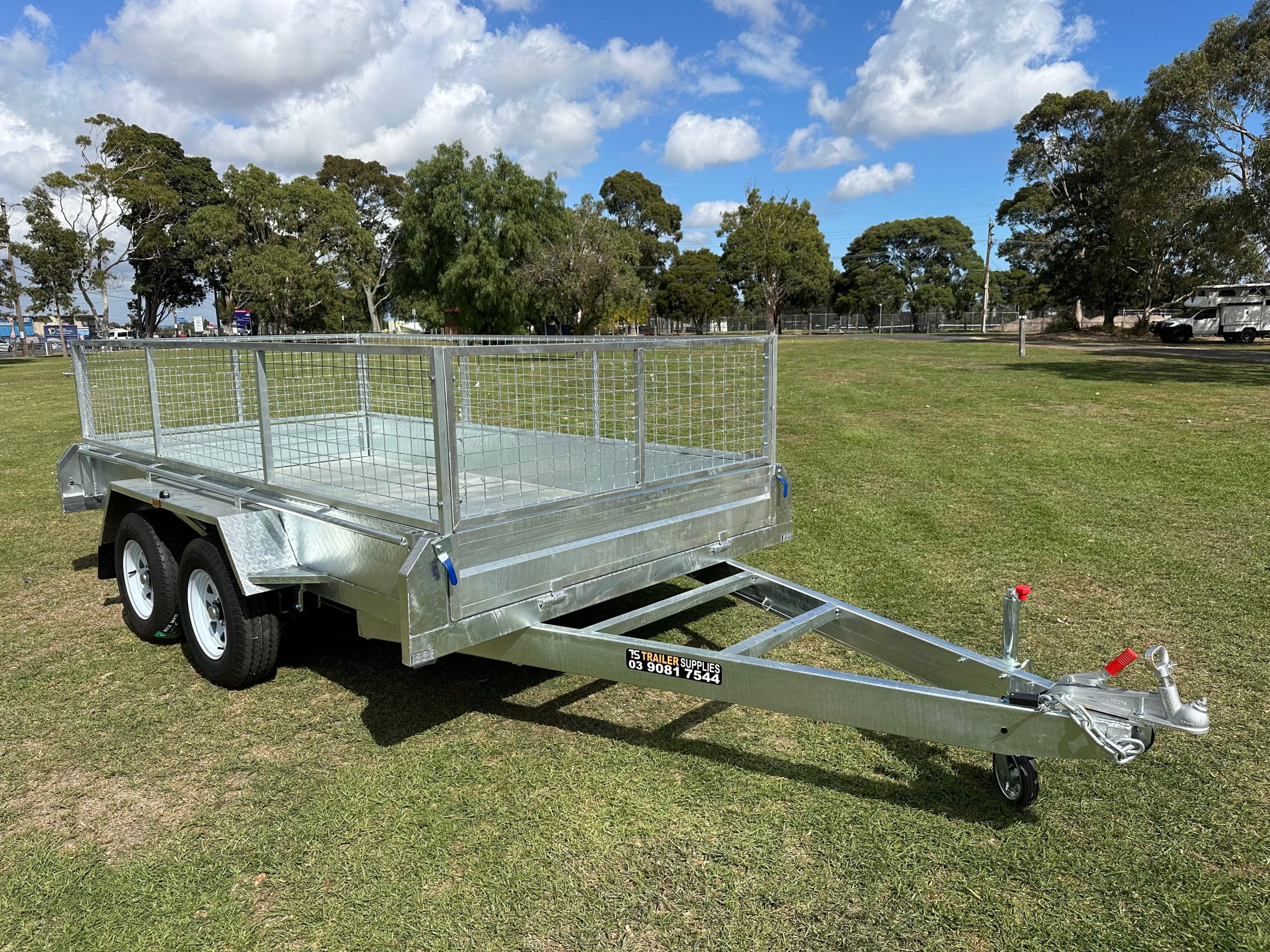

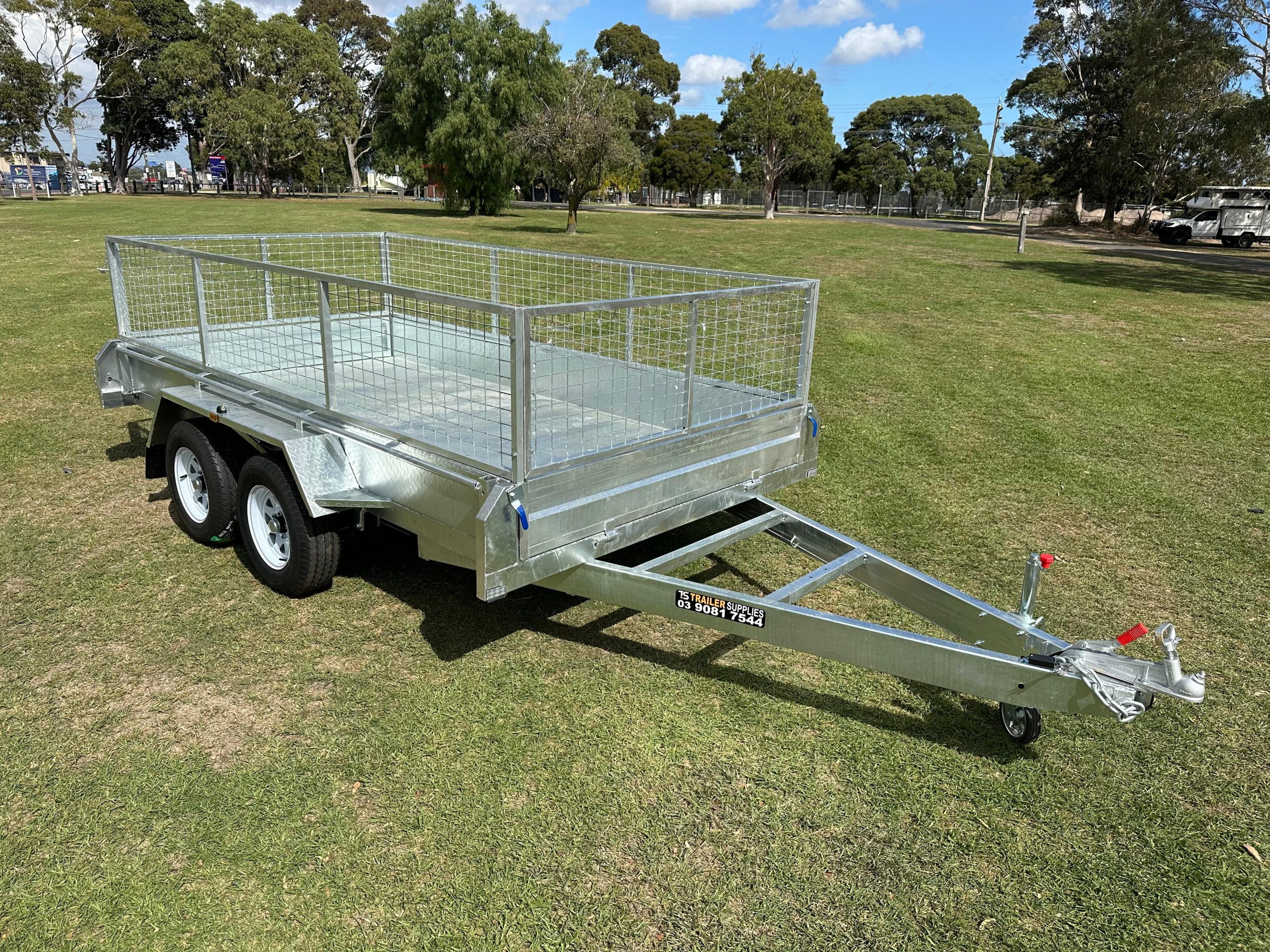

12 x 6 600 Cage
( $250.00 )
12 x 6 900 Cage
( $350.00 )
12 months Victorian registration ($150.00)
Spare Wheel ($130.00)
Ladder Racks ($330.00)
Tool box mounted on draw bar ($485.00)
Heavy Ribstop material canvas cover with metal pitched frame ($400.00)
Mower box and ramp on draw bar ($440.00)

Features:

  • Hot Dipped Galvanised
  • The main frame of the trailer is made out of 100x50mm
  • 14″ Brand New Sunraysia Rims & Light Truck Tyres (900KG Rating)
  • Front and Rear Fold Down Gates & Tie Down Rails On Sides
  • Japanese NSK Bearings come as standard not cheap Chinese bearings
  • Hot Dipped Galvanised Checker Plate Floor & Inner Side Box
  • Step Up Platform above Wheel Guards
  • Unique 150mm thick draw bar that is 1900mm Extra Long Draw Bar Extended 900mm to underside of Chasis
  • Unique 150mm x 50mm x 4mm Draw Bar for Extra Strength & Durability*
  • Heavy Duty Roller Rocker 8 Leaf Suspension
  • Fully Welded Heavy Duty Body with 100mm x 50mm RHS Tube Chassis
  • 50mm Solid Square Axles
  • LED Tail Lights
  • Free Heavy Duty Swing up Jockey Wheel & Manual Parking Brakes
  • 50mm Australian Standard Coupling
  • ADR Standard Heavy Duty Chain & Load Rated Shackle
  • Flat or Round 7-Pin Plug

Dimensions & Weight (No Cage):

  • Internal Size: L3600 x W1800 x H300
  • Overall Size: L4400 x W2300 x H890
  • Gross Vehicle Mass: 3500KG
  • Net Weight: 750KG

Optional Extras:

  • 600mm Removable Cage
  • 900mm Removable Cage
  • 14” Spare Light Wheel
  • 12 Month Registration (VIC)
  • Canvas Cover (600mm)
  • Canvas Cover (900mm)
  • Ladder Racks (Adjustable Height)
  • Ramp (1.5m)
Options

12×6 600mm, 12×6 900mm, 12×6 no cage

Features of Our
Trailers

HEAVY DUTY DESIGN

Is the load too heavy for a pick-up? Count on the heavy duty design we offer to transport any kind of heavy material.

TOP-QUALITY GALVANISED TRAILERS

All our trailers have premium galvanised coating that gives an outstanding level of resistance and is very hard to damage during the transportation of materials. Galvanised coating life expectancy is not only long but very reliable (around 50 years in rural areas).

FULLY COMPLIANT WITH AUSTRALIAN
DESIGN STANDARDS

As an Australian-owned and operated business, we take pride in saying our country has the most strict design standards in the entire world. We make sure all our trailers comply with the minimum coating thickness required.

BEST FORM OF RUST PROTECTION
AVAILABLE HOT-DIPPED GALVANISED
COATING

Is the load too heavy for a pick-up? Count on the heavy-duty design we offer to transport any kind of heavy material.
